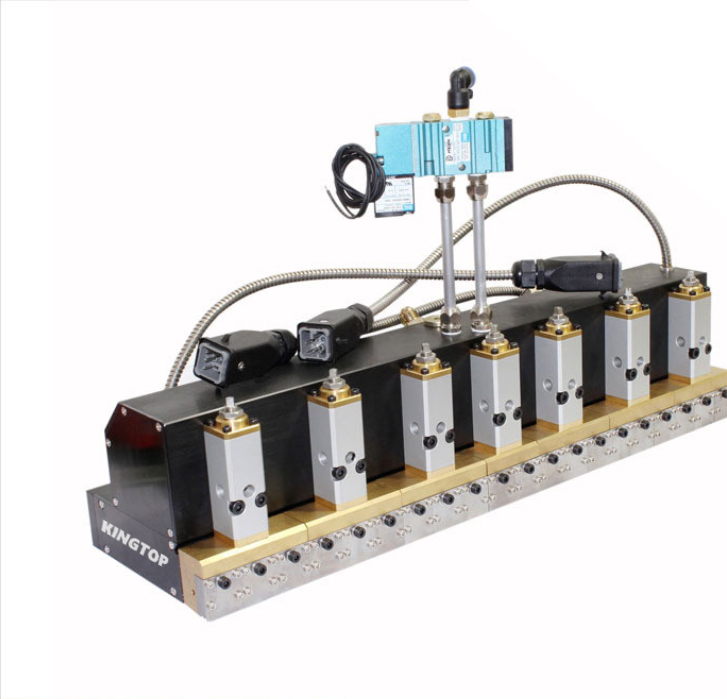

Sd-ufc High-speed scraping gun
Feature:
• Precisely controlled process, with extremely uniform coating.
• Easy to replace the lip coating and modules quickly
• Quickly replace the filter for easy cleaning
• The coating on the lips has a hardness above HRC 60, which is extremely wear-resistant.
Technical scope:
• The maximum width of the scraping rubber is 1500 mm
• Operating temperature range: 38°C to 200°C (100°F to 390°F)
• Preheating time: Cold start: Preheat for 20 min / Module replacement: Preheat for 1 min
• Adhesive viscosity: 100 to 40,000 mPa (100 to 40,000 centipoise)
• Gasket pressure range: 7 bar (100 psi) to 68 bar (1000 psi)
• Air pressure range: 5 to 9 bars (74 to 125 psi)
• Power supply voltage: 200 - 240 VAC / 1 phase / 50 - 60 Hz, with 24 VDC
• Precisely controlled process, with extremely uniform coating.
• Easy to replace the lip coating and modules quickly
• Quickly replace the filter for easy cleaning
• The coating on the lips has a hardness above HRC 60, which is extremely wear-resistant.
Technical scope:
• The maximum width of the scraping rubber is 1500 mm
• Operating temperature range: 38°C to 200°C (100°F to 390°F)
• Preheating time: Cold start: Preheat for 20 min / Module replacement: Preheat for 1 min
• Adhesive viscosity: 100 to 40,000 mPa (100 to 40,000 centipoise)
• Gasket pressure range: 7 bar (100 psi) to 68 bar (1000 psi)
• Air pressure range: 5 to 9 bars (74 to 125 psi)
• Power supply voltage: 200 - 240 VAC / 1 phase / 50 - 60 Hz, with 24 VDC
