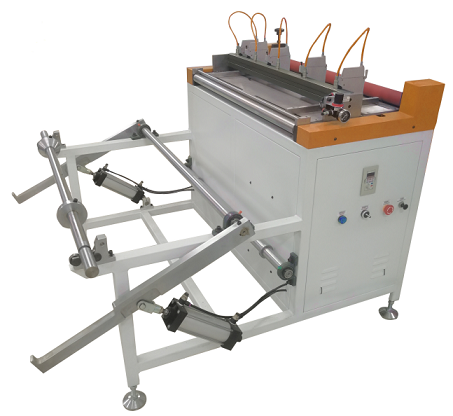

KTZZ 80-850-6 Slitting Knife and Material Rack

Technical parameters:

1) Paper feeding speed: ＜ 15m/min
2) Adjustable width of filter paper: 850 mm( Optional specifications:650mm. 850mm .1100 mm)
3) Power supply voltage: 220V/50HZ
4) Motor power:1kw
5) Working air pressure: 0.6Mpa
6) Machine weight: 290KG

7) Boundary dimension: 1270*1460*1020mm (length, width and height

8) The pre slitting paper feeder can accurately adjust the slitting size according to the filter element size of different specifications through stepless speed regulation of frequency converter and cylinder knife. It is easy to operate, and the slitting effect is flat. The paper feeding speed is consistent with the printing filter paper speed of the printer.
