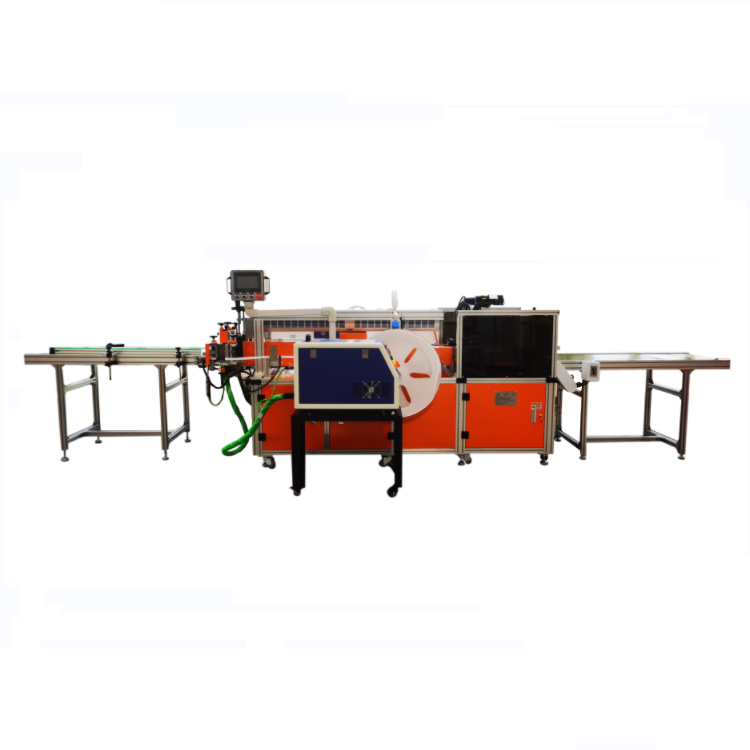

KTTB-AUTO-2 Automatic Continuous Edge Banding Production Line

Technical parameters:

1. Voltage: 220V/60HZ

2, air pressure: 0.6MPA

3, the maximum product size: 600*450*70mm

4, the minimum product size: 150*150*10mm

5, the production line dimensions: 6000*2200*1600mm

6, sealing edge thickness: 1-3mm

7, operation rhythm: 15 m/min

8. Weight: 700KG

9, equipment function: continuous automatic sealing edge strip, hot melt adhesive automatic dry curing, automatic shear sealing edge strip, automatic cutting

10, drive mode: private motor + stepper motor + cylinder

11, touch screen full parameter setting, system control, according to different specifications of the product, simple setting can complete the production, easy to operate,

Touch screen display parameters easy to operate, full intelligent Chinese man-machine interface

12. The system adopts full private motor, stepper motor, PLC control, accurate positioning and identification, fast and smooth
