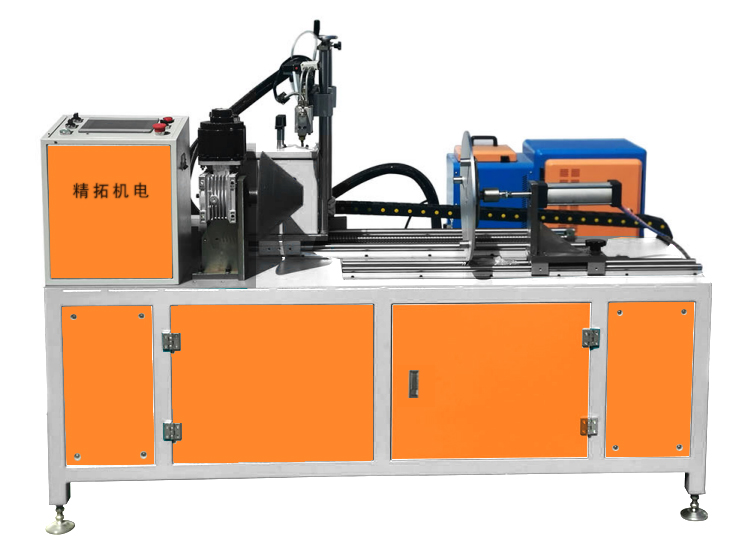

KTRX1 Winding and gluing machine
Technical parameters:
1. Working voltage: AC380V/50HZ
2. Power: 8KW
3. Product diameter: 50-500mm (adjustable)
4. Product height: 100-700mm (adjustable)
5. Working air pressure: 0.6Mpa
6. Working speed: 20M/min
7. Equipment weight: 380KG
8. Overall dimension: 1900mm * 800mm * 1300mm (L * W * H)
This machine is used to coat strip glue on the outer ring of air filter. The length, thickness and spacing of glue can be precisely controlled by PLC, touch screen and stepping motor.
1. Working voltage: AC380V/50HZ
2. Power: 8KW
3. Product diameter: 50-500mm (adjustable)
4. Product height: 100-700mm (adjustable)
5. Working air pressure: 0.6Mpa
6. Working speed: 20M/min
7. Equipment weight: 380KG
8. Overall dimension: 1900mm * 800mm * 1300mm (L * W * H)
This machine is used to coat strip glue on the outer ring of air filter. The length, thickness and spacing of glue can be precisely controlled by PLC, touch screen and stepping motor.
