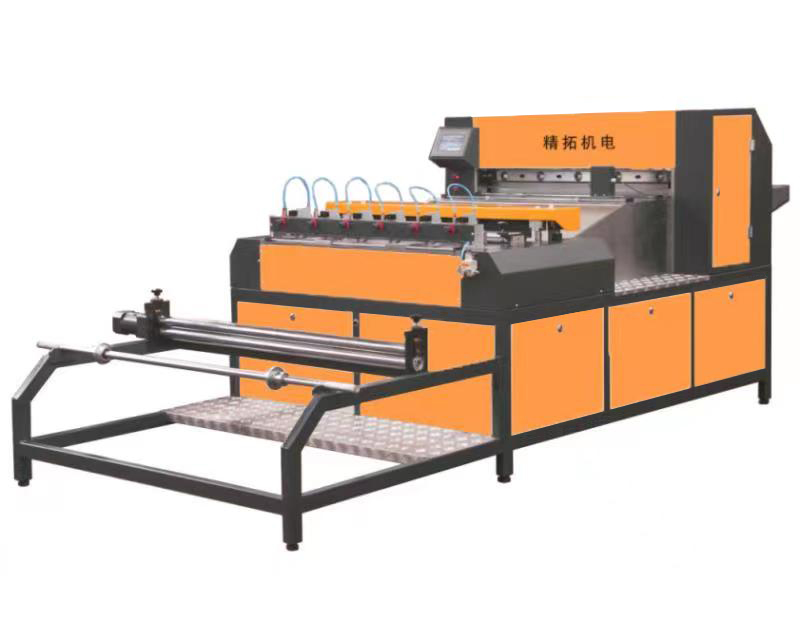

KTZZ65-1200-3 Automatic reciprocating origami production line
Technical parameters:
1. Folding speed: 150 folds/min
2. Filter paper width: 32-1200mm
3. Folding height: 8-65mm
4. Power supply voltage: 380V/50HZ
5. Motor power: 4.5KW
6. Preheating power: 6.5KW
7. Heating temperature: room temperature - 200 ℃
8. Working air pressure: 0.6Mpa
9. Machine weight: 800KG
10. Boundary dimension: 5100 * 1800 * 1500 mm (L x W x H)
This machine is mainly equipped with: Fuji servo motor, Mitsubishi PLC, Taiwan HIWIN guide rail, 10 inch WEINVIEW touch screen. It can automatically adjust the knife. It can realize transformation and folding of different heights, such as M type and W type.
1. Folding speed: 150 folds/min
2. Filter paper width: 32-1200mm
3. Folding height: 8-65mm
4. Power supply voltage: 380V/50HZ
5. Motor power: 4.5KW
6. Preheating power: 6.5KW
7. Heating temperature: room temperature - 200 ℃
8. Working air pressure: 0.6Mpa
9. Machine weight: 800KG
10. Boundary dimension: 5100 * 1800 * 1500 mm (L x W x H)
This machine is mainly equipped with: Fuji servo motor, Mitsubishi PLC, Taiwan HIWIN guide rail, 10 inch WEINVIEW touch screen. It can automatically adjust the knife. It can realize transformation and folding of different heights, such as M type and W type.
