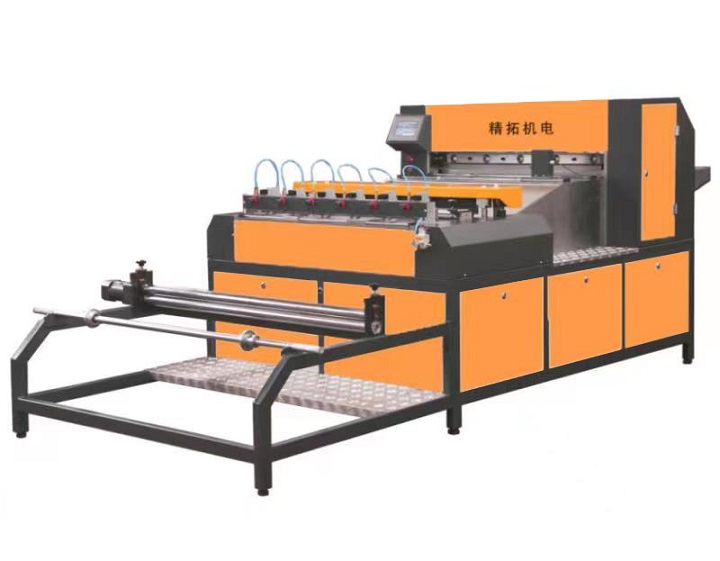

KTZZ65-800-3 automatic reciprocating origami production line
Technical parameters:
1. Folding speed: 160 folds/min
2. Filter paper width: 32-800mm
3. Folding height: 8-65mm
4. Power supply voltage: 380V/50HZ
5. Motor power: 4KW
6. Preheating power: 5KW
7. Working air pressure: 0.6Mpa
8. Machine weight: 800KG
9. Boundary dimension: 5100 * 1500 * 1500 mm (L x W x H)
This machine is mainly equipped with: Fuji servo motor, Mitsubishi PLC, Taiwan HIWIN guide rail, 10 inch WEINVIEW touch screen. It can automatically adjust the knife. It can realize transformation and folding of different heights, such as M type and W type.
1. Folding speed: 160 folds/min
2. Filter paper width: 32-800mm
3. Folding height: 8-65mm
4. Power supply voltage: 380V/50HZ
5. Motor power: 4KW
6. Preheating power: 5KW
7. Working air pressure: 0.6Mpa
8. Machine weight: 800KG
9. Boundary dimension: 5100 * 1500 * 1500 mm (L x W x H)
This machine is mainly equipped with: Fuji servo motor, Mitsubishi PLC, Taiwan HIWIN guide rail, 10 inch WEINVIEW touch screen. It can automatically adjust the knife. It can realize transformation and folding of different heights, such as M type and W type.
